Ecoset
![Ecoset](https://www.dr-frohn.com/wp-content/uploads/ECOSET-02.jpg)

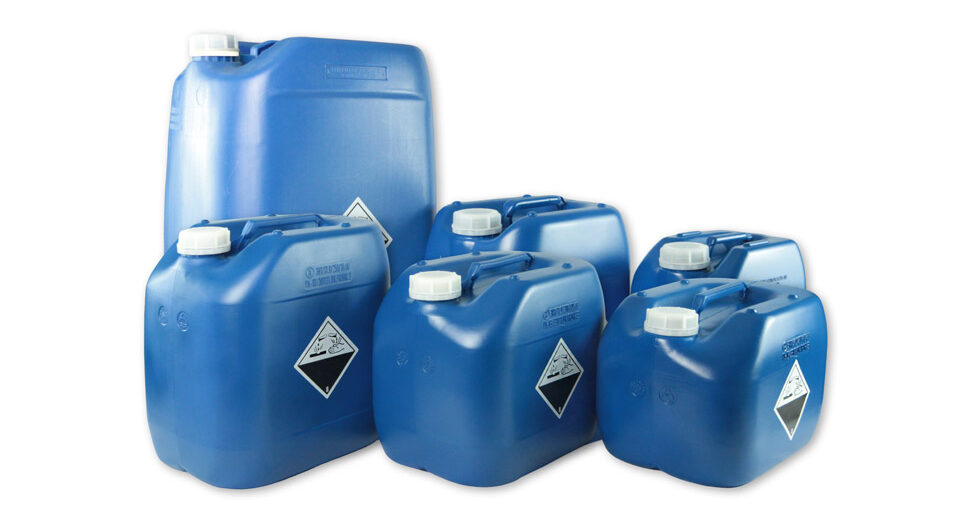

ECOSET®
(Int. Patents)
The container for hazardous liquids with VENTILATION CHANNEL and guaranteed TOTAL DISCHARGE
- Gurantee of total discharge even when held tilted
- Complete usage of the liquid
- Simple, economic cleaning
- Universal use as a result of wide-ranging hazardous goods homologations
- Does not pollute the environment
- Can be easily recycled
![ecoset ecoset](https://www.dr-frohn.com/wp-content/uploads/2016/11/ecoset-963x510.jpg)

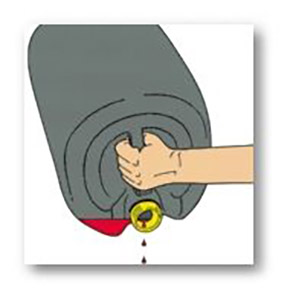

CONVENTIONAL JERRYCANS
![ECOSET-03](https://www.dr-frohn.com/wp-content/uploads/ECOSET-03.jpg)
ECOSET
![Guarantee of total discharge](https://www.dr-frohn.com/wp-content/uploads/2016/11/animation3a-1.gif)
Extras
- Customer’s logo
- Special colors
- Degasification – Screwcaps
Material
- Container and screw cap are made of HDPE
Technical specifications
Nominal capacity
|
Maximum capacity
|
Dimensions
LxWxH mm |
Weight
|
Container mouth
|
UN-approval-
zulassung |
---|---|---|---|---|---|
5 l
|
6 l
|
195x155x250
|
300 g
|
DIN 60
|
![]() |
10 l
|
12 l
|
230x195x340
|
500 g
|
DIN 60
|
![]() |
13 l
|
13,5 l
|
230x195x375
|
550 g
|
DIN 60
|
![]() |
20 l-H
|
22 l
|
285x232x400
|
950 g
|
DIN 60
|
![]() |
20 l
|
22 l
|
390x285x280
|
1.000 g
|
DIN 60/70
|
![]() |
25 l
|
27 l
|
390x285x330
|
1.150 g
|
DIN 60/70
|
![]() |
30 l
|
34 l
|
390x285x390
|
1.300 g
|
DIN 60/70
|
![]() |
60 l
|
65 l
|
395x325x620
|
2.800 g
|
DIN 60/70
|
![]() |
Palletizing
5 l
|
10 l
|
20/25/30 l
|
20 l - H
|
60 l
|
|
---|---|---|---|---|---|
Euro-Pallets CP2 (800 mm x 1.200 mm) |
30 units / layer
|
20 units / layer
|
8 units / layer
|
14 units / layer
|
6 units / layer
|
Chemistry Pallets CP1 (1.000 mm x 1.200 mm) |
36 units / layer
|
25 units / layer
|
10 units / layer
|
17 units / layer
|
9 units / layer
|
